1 液壓控制柜
Hydraulic control cabinet |
6 水管路閥門
Water pipeline valve |
11 軸向壓緊活塞桿
Axial impact piston rod |
2 時(shí)鐘
Clock |
7 旋臂
Spin arm |
12 低壓水泵
Low pressure water pump |
3 壓力表
Pressure meter |
8 活動(dòng)鎖緊螺
Movable lock screw |
13 高壓水泵
High pressure water pump |
4 按鈕板
Button board |
9 頂壓活塞桿
Top press piston rod |
|
5 頂壓油缸
Top press oil cylinder |
10 壓爪
Press claw |
|

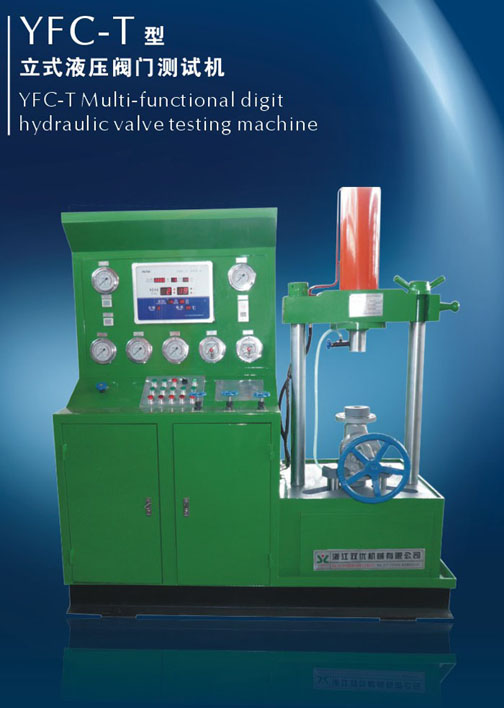

| YFC-T型外形結(jié)構(gòu)YFC-T overall structure |
