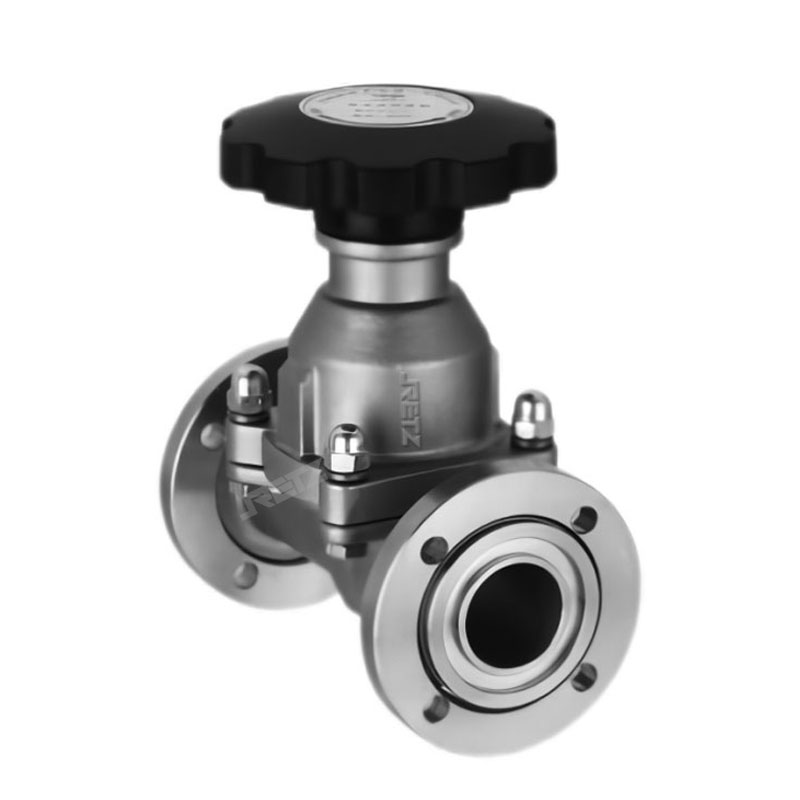

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口高真空隔膜閥關閉件-軟質隔膜，由閥桿控制并做上、下運動以切斷介質。閥門適用于空氣及非腐蝕性氣體、液體、水、酸、堿的真空系統Retz Imported high vacuum diaphragm valve closure component - soft diaphragm, controlled by the valve stem and performing up and down movements to cut off the medium. Valves are suitable for vacuum systems of air and non corrosive gases, liquids, water, acids, and alkalis
規格：3/8～2" Specification: 3 / 8 ~ 2“
適用溫度Temperature：0~150℃
閥體、閥板、閥桿：不銹鋼 Valve body, plate and stem: stainless steel
隔膜：硅橡膠、氟橡膠 Diaphragm: silicone rubber, fluororubber
控制Control:手動、氣動、電動Manual, pneumatic, electric
進口高真空隔膜閥主要性能 Main performance
高真空隔膜閥是利用利用閥桿帶動橡膠密封片螺桿傳動上下運動，用來截止或接通真空系統 RETZ high vacuum diaphragm valve uses the valve stem to drive the rubber sealing plate screw to move up and down, which is used to cut off or connect the vacuum system
高真空隔膜閥具有關閉力矩小，真空密封性能好。連接形式有活套法蘭連接，快卸法蘭連接，焊接式連接、內螺紋連接 High vacuum diaphragm valve has small closing torque and good vacuum sealing performance. The connection forms include looper flange connection, quick release flange connection, welded connection and internal thread connection
技術性能規范 Technical performance specifications
|
適用范圍（Pa）
|
10¯5-1×10¯4
|
|
閥門漏率（Pa.L/S)
|
≤1.3×10¯4
|
|
介質溫度（℃）
|
-25~+80（密封材料為丁晴橡膠）
|
|
-30~+150（密封材料為氟橡膠）
|
|
安裝位置
|
任意
|
RETZ的隔膜閥可以滿足工控系統的截斷、調節、防腐、粘性流體、纖維質流體、泥漿、污泥、懸浮固態物、衛生潔凈等流體的控制RETZ’s diaphragm valve can meet the requirements of industrial control systems for cutting off, regulating, anti-corrosion, viscous fluid, fibrous fluid, mud, sludge, suspended solids, hygiene, and other fluid control
產品涵蓋了：進口氣動隔膜閥、電動隔膜閥、襯膠隔膜閥、襯氟隔膜閥、直通式隔膜閥、角式隔膜閥、美標隔膜閥、德標隔膜閥、日標隔膜閥、英標隔膜閥、搪玻璃隔膜閥、真空隔膜閥、不銹鋼隔膜閥、衛生級隔膜閥、無襯里隔膜閥、PVC隔膜閥、PFA高潔凈氟塑料隔膜閥、高純膜片閥The products cover: imported pneumatic diaphragm valves, electric diaphragm valves, rubber lined diaphragm valves, fluorine lined diaphragm valves, straight through diaphragm valves, angle diaphragm valves, American standard diaphragm valves, German standard diaphragm valves, Japanese standard diaphragm valves, British standard diaphragm valves, glass lined diaphragm valves, vacuum diaphragm valves, stainless steel diaphragm valves, sanitary grade diaphragm valves, unlined diaphragm valves, PVC diaphragm valves, PFA high cleaning fluorine plastic diaphragm valves, high-purity diaphragm valves
